eHLS2 3D Scanner
Discover the next generation of 3D scanning with the eHLS2 from eSurvey — a handheld device that combines the power of laser scanning with precise positioning in one compact solution.
Technical Details
Instant positioning
Replaceable
Multi-Frequency
6K colorscreen
Delivery within 24 hours
Free on-site demo
Unlimited technical support
2-year warranty
Installment available
Pairs well with
eHLS2 3D Scanner
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ's
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Stunning detail meets brilliant color

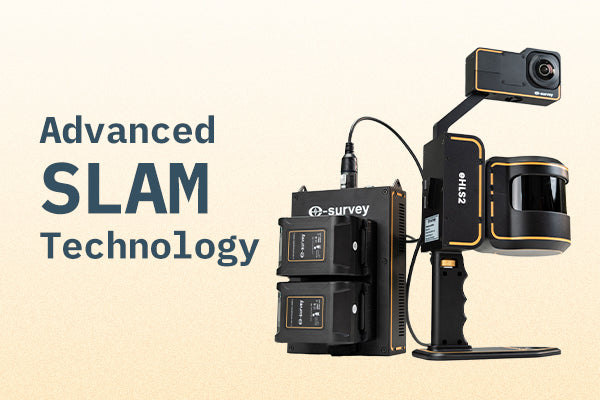

The eHLS2 gives you the power of 3D scanning with a relative accuracy of up to 1 cm, thanks to advanced SLAM technology that delivers stable, precise measurements over a range of up to 120 meters.

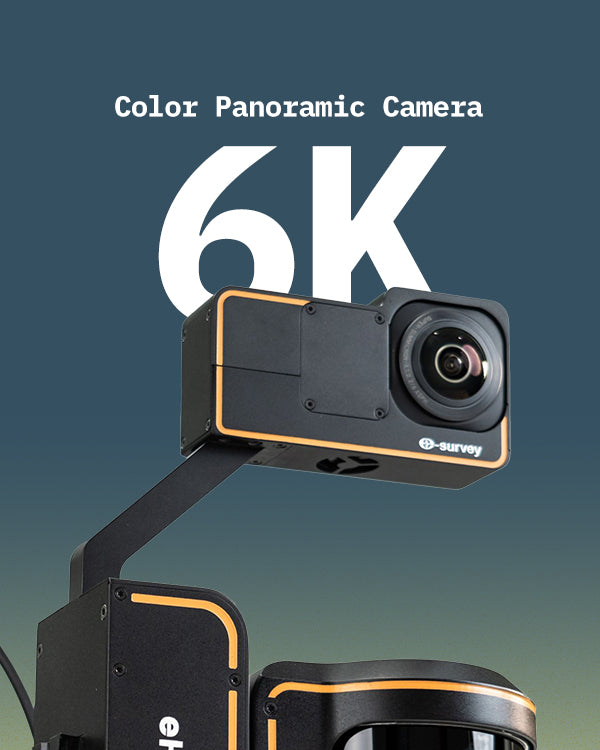

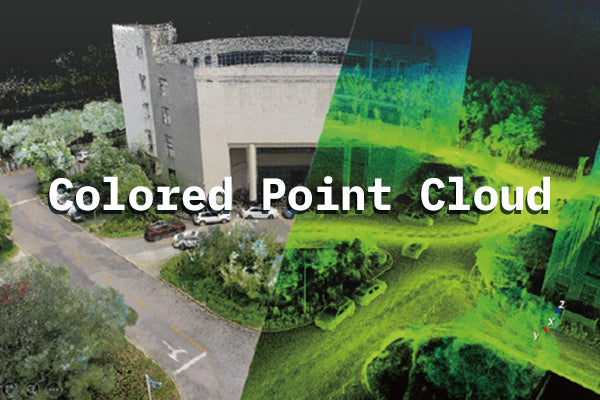

Its built-in 6K panoramic camera transforms every site into a vivid digital scene — making documentation and post-processing easier than ever.

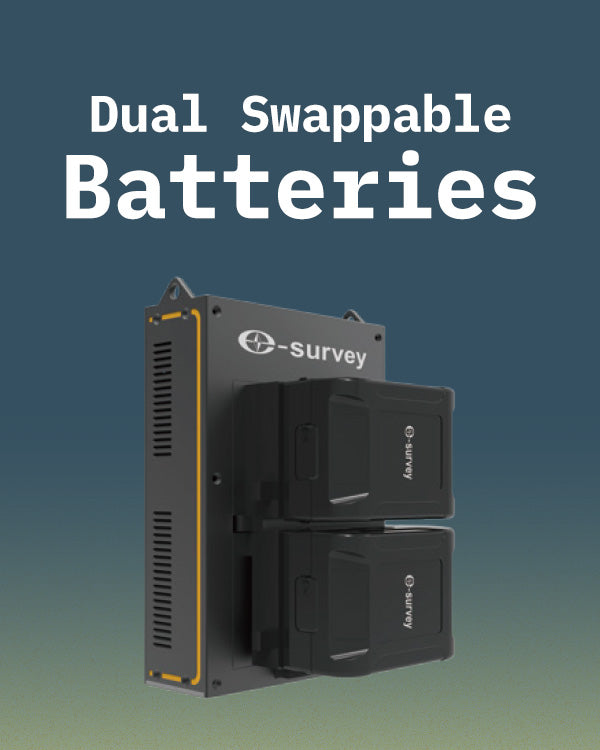

Dual swappable batteries ensure uninterrupted operation, even during the longest field missions.
Smarter together — for next-level accuracy
The eHLS2 is fully compatible with advanced GNSS devices like the E800, providing greater reliability even in complex tasks.
Its advanced SLAM algorithm works in perfect harmony with RTK technology to deliver highly accurate and dependable geospatial data — even in large and open environments.
One tool. Endless surveying applications
The eHLS2 is your ideal companion for mobile surveying — both indoors and outdoors — thanks to its smart design, lightweight build, and rapid setup.
Wear it on your back or mount it on any platform — it adapts to your workflow, delivering flexible performance without compromising on quality or accuracy.
Technical Details
System Performance
LiDAR Details
- Range: 120 m
- LiDAR Channels: 16 / 32
- Points per second: 320,000 / 640,000
- Field of View (FOV): 270°×360°
- Laser Classification: Class 1
- Laser Wavelength: 905 nm
Accuracy & Data Processing
- Relative Accuracy: 1 cm
- Absolute Accuracy: 3 cm
- Point Cloud Thickness: 1 cm (unfiltered)
- Repeatability: 2 cm (difference between repeated measurements)
- Data Format: LAS, LAZ
Panoramic Camera
- Lens: Dual lenses, 360° coverage
- Optical Resolution: 6K panoramic
Physics Features
Handheld Device
- Device dimensions: 190 × 90 × 395 mm (with camera)
- Weight: 2.15 kg (with camera)
- Battery: DC 14.4V
- Operating time: 3 hours (dual swappable batteries)
Processing Unit
- Dimensions: 145 × 53 × 223 mm
- Weight: 1.2 kg (without battery)
- Storage: 1 TB
- Working environment: Indoor and outdoor
Rover specifications
Bass device specifications
in the box, you'll find
eHLS2 Handelheld Model
Host Module
Battery assemply
Charger
Power Cable
Rugged Device
Type-C Cable
Instrument Case
USB Flash
Software Dongle
Shoulder Strap
TNC Cable
GNSS Cable
Antenna
GNSS Unit
Lidar Bakpack
