Technical Details
Measures in 1.5 seconds
25 Consecutive Hours
Up to 1000 meters
It scores up to 40,000 points.
Supports USB Flash
Colored, 3.2 inch size.
Responsive Button
Total Station SM101
The Survey Master SM101 Total Station is designed to give you unparalleled accuracy in measurements and angles, without the need for a reflector or assistant. European lenses provide clearer vision, and intelligent components work together harmoniously for trouble-free performance.
Couldn't load pickup availability
Pickup available at Riyadh Branch
Usually ready in 24 hoursDelivery within 24 hours
Free on-site demo
Unlimited technical support
4-year warranty
Installment available
Technical Details
Measures in 1.5 seconds
25 Consecutive Hours
Up to 1000 meters
It scores up to 40,000 points.
Supports USB Flash
Colored, 3.2 inch size.
Responsive Button
Datasheet Attached
📄 Datasheet Download (PDF)Total Station SM101
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ's
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
An integrated system for the most accurate results with unparalleled consistency.
In the SM101 device, every engineering detail is designed to serve performance, accuracy, and stability. Under the hood, a smart ARM processor processes data quickly and powers the device instantly. The 24000mAh battery provides robust support, allowing the device to operate for more than 25 consecutive hours.
The advanced European lens provides a clearer optical view even in wide and obstructed locations, and with the dual compensator, you will get automatic correction of the tilt angle up to ±4 degrees, which means accurate readings even on uneven terrain.

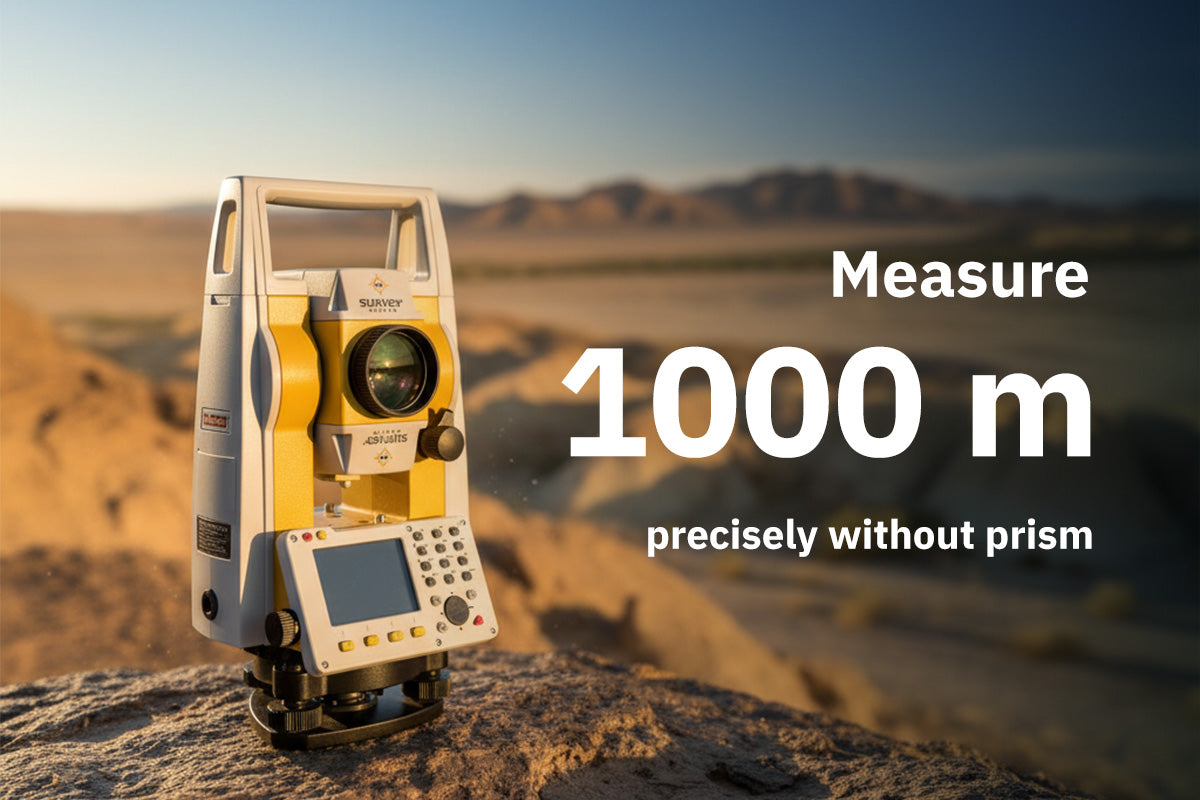

Freedom to measure up to 1000 meters ... without a reflector or assistant!
Equipping a reflector or relying on a field assistant is essential with total station devices, but with the SM101, thanks to advanced laser technology, you can accurately measure distances up to 1000 meters without a reflector or assistant, saving you time and effort, especially in difficult places or at high altitudes.

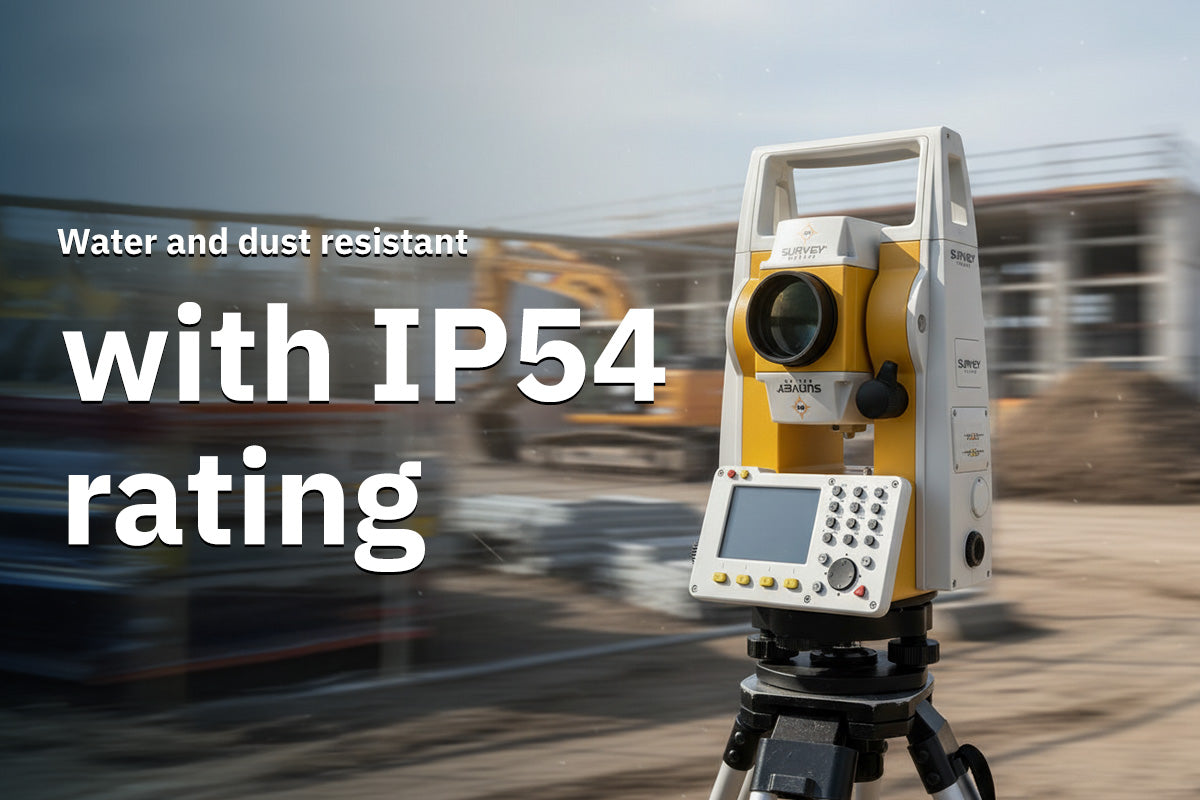

Consistent performance in all field conditions !
Whether you're on a dusty construction site or working in the rain, the SM101 is designed to work with you reliably and maintain measurement accuracy and performance quality even in harsh field conditions, thanks to its IP54 water and dust resistant design.
Precise technical details.
System Performance
Measurement time
- Accurate measurement: 0.7 seconds
- Fast measurement: 0.5 seconds
- Target tracking: 0.3 seconds
- Minimum reading time: 0.1 mm (fine/track)
Accuracy
- Reflector's distance accuracy: ±(3 mm + 2×10⁻⁶×D)
- Distance accuracy using reflector: ±(2 mm + 2×10⁻⁶×D)
- Angle accuracy: 2 seconds
- Compensator accuracy: 1 second / ±4′ biaxial
- Optical magnification: ×30 / 1°30 field of view′
Inside the box there is
Total Station
2 Batteries
Charger
Instrument Case
Manual
Warranty Card
Certificate
USB Flash
RP60 Reflector
RP30 Reflector
Cover
Data Cable
