Technical Details
±(2mm + 2×10⁻⁶×D)
Without a reflector, up to 1000 meters.
Instant touch response to reduce vibration during measurement.
Works for up to 20 hours continuously.
It scores up to 40,000 points.
Via Type-C and Bluetooth 5.0, and supports USB Flash.
Total Station SM102
The Survey Master SM102 Total Station sets a new standard for total stations, thanks to its advanced distance and angle measurement technology, Android operating system, Octa-Core processor, European lenses, and dual-axis compensator.
Couldn't load pickup availability
Pickup available at Riyadh Branch
Usually ready in 24 hoursDelivery within 24 hours
Free on-site demo
Unlimited technical support
4-year warranty
Installment available
Technical Details
±(2mm + 2×10⁻⁶×D)
Without a reflector, up to 1000 meters.
Instant touch response to reduce vibration during measurement.
Works for up to 20 hours continuously.
It scores up to 40,000 points.
Via Type-C and Bluetooth 5.0, and supports USB Flash.
Datasheet Attached
📄 Datasheet Download (PDF)Total Station SM102
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ's
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
SM102.. A perfect balance between Intelligent Performance and Practical Design.
The SM102 gives you balanced performance, combining a 2″ precision angle measurement system based on a high-precision encoding disc and optical sensors, with a dual-axis compensator with a correction range of ±4′ to ensure stable readings on uneven terrain.

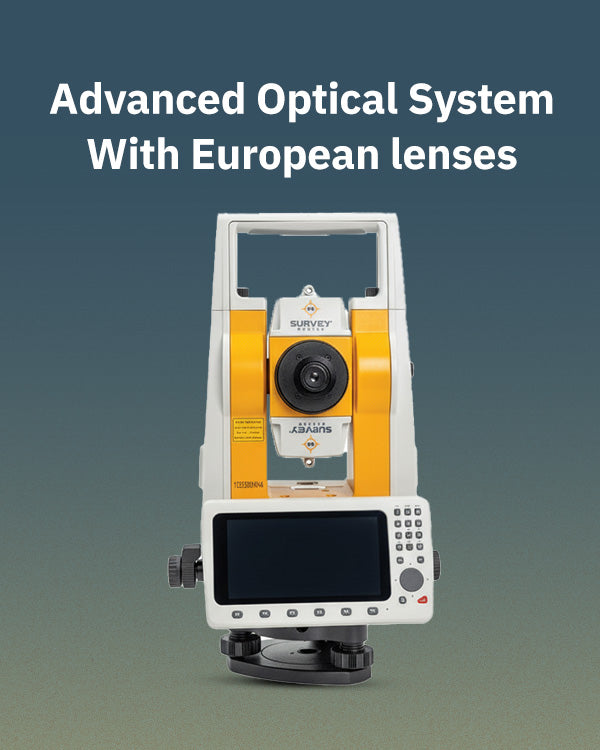

Advanced European lenses provide crisp, clear optics that minimize chromatic aberration and highlight fine details, even in wide-open spaces. The bright, 5.5-inch transflective touchscreen also offers a comfortable and readable user interface in all lighting conditions.

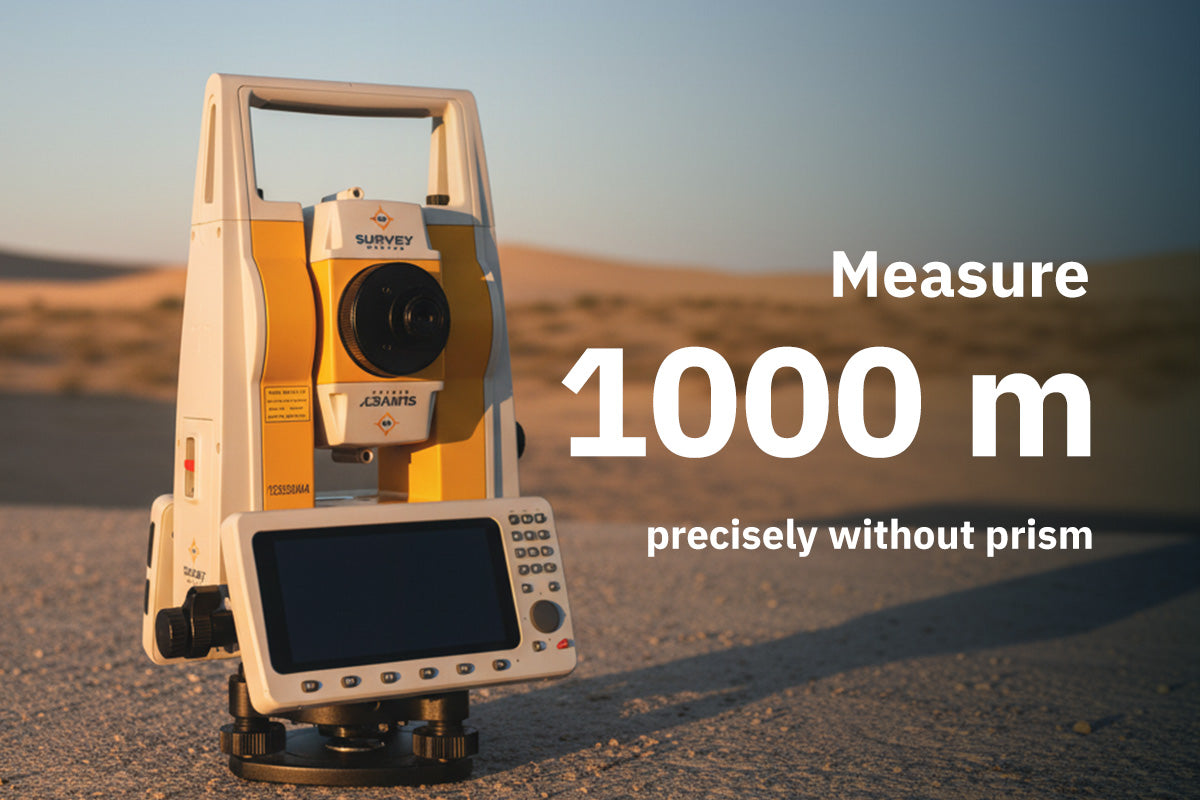

1000 meters without a Reflector... and 4000 meters with a Single Reflector!
With the SM102 Total Station, setting up a reflector or relying on a field assistant is a thing of the past.
Thanks to advanced laser technology, you can accurately measure an entire project up to 1000 meters in size by yourself without a reflector or assistant, and you can measure up to 4000 meters using a single reflector!

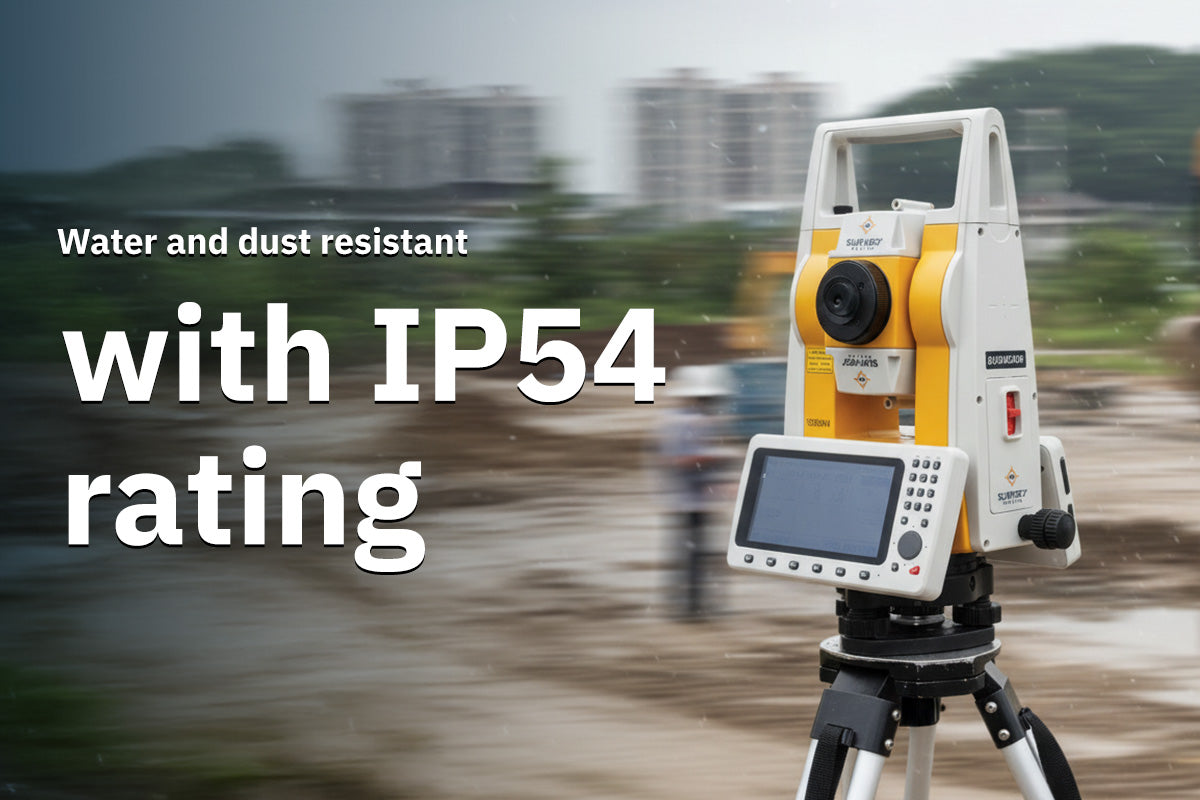

IP54 rated for field use.
Whether you're on a dusty construction site or working in the rain, the SM102 is designed to work with you reliably and maintain measurement accuracy and performance quality even in harsh field conditions, thanks to its IP54 water and dust resistant design.
Precise technical details.
System performance
Measurement time
- Accurate measurement: 0.7 seconds
- Fast measurement: 0.5 seconds
- Target tracking: 0.3 seconds
- Minimum reading time: 0.1 mm (fine/track)
Accuracy
- Reflector's distance accuracy: ±(3 mm + 2×10⁻⁶×D)
- Distance accuracy using reflector: ±(2 mm + 2×10⁻⁶×D)
- Angle accuracy: 2 seconds
- Compensator accuracy: 1 second / ±4′ biaxial
- Optical magnification: ×30 / 1°30 field of view′
Physical Properties
Rover specifications
Base Device Specifications
Inside the box there is
Total Station
2 Batteries
Charger
Instrument Case
Manual
Warranty Card
Certificate
USB Flash
RP60 Reflector
RP30 Reflector
Cover
Data Cable
