Here, Where your field success begins!

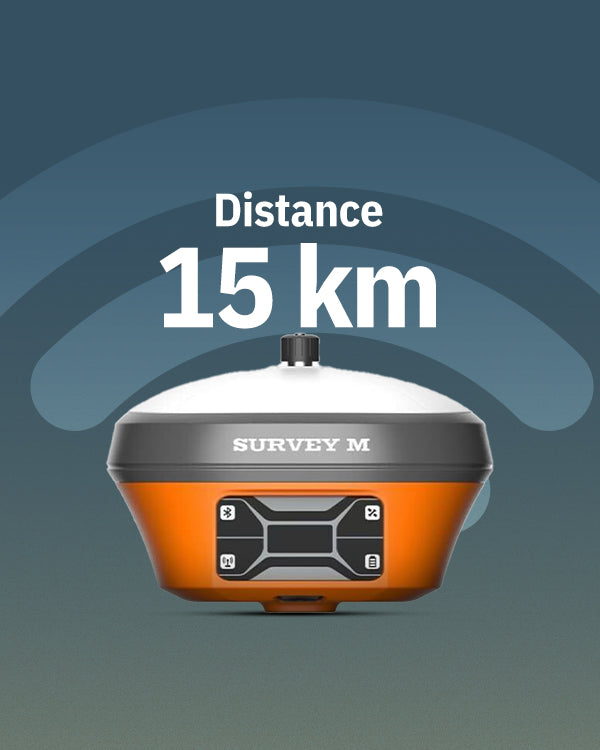

Thanks to the powerful built-in 5W radio, you’ll enjoy wide field coverage of up to 15 km, with precise real-time RTK corrections via UHF signals and the 4G network.

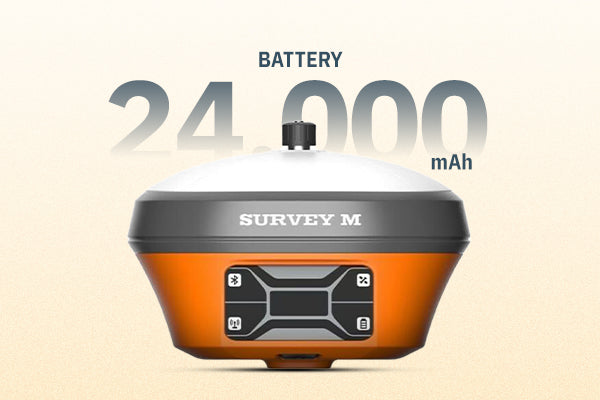

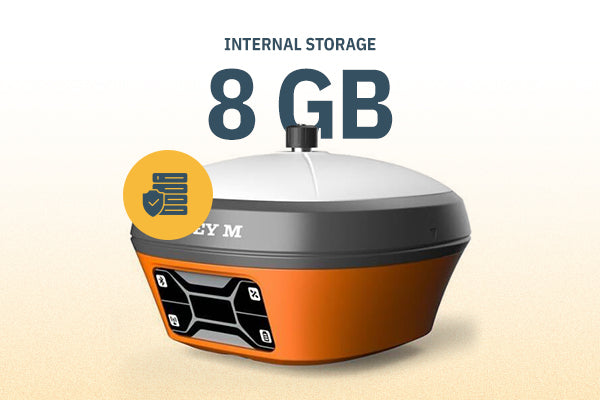

The integrated 24,000mAh battery delivers over 13 hours of uninterrupted fieldwork, while the 8GB internal memory securely stores your projects, no matter their size.

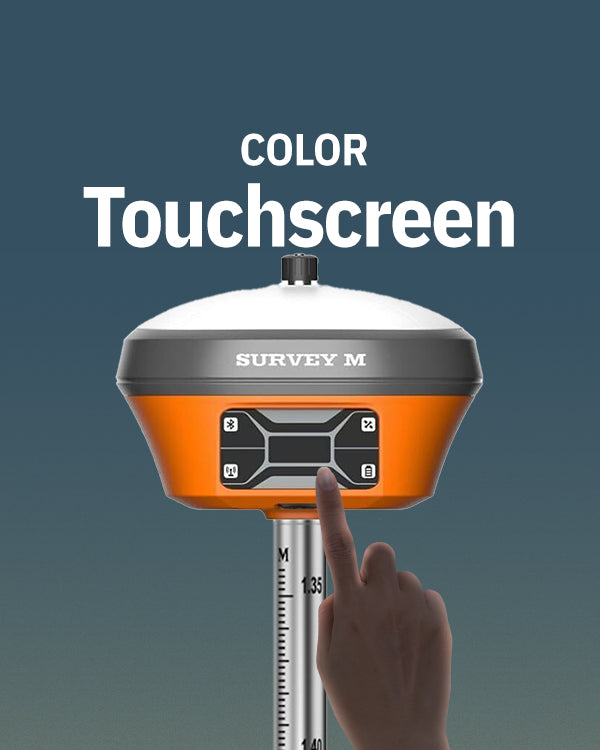

All of this is complemented by a vibrant color display with smart audio and visual alerts — keeping you fully connected to the field.
Resilient performance under all weather conditions
The E80+M60 is built with a rugged, shock-resistant structure that confidently withstands field challenges.
It is rated IP67 for water and dust protection and operates reliably in extreme temperatures ranging from -30°C to +65°C.
Your measurements stay accurate — no matter the obstacles
Thanks to the smart built-in e-Bubble tilt sensor, you can capture highly accurate coordinates while standing, walking, and even in tight spaces or rugged terrains.
This provides a faster, more flexible surveying experience without compromising measurement precision.
Technical Details
System Performance
Tracking Systems & Number of Channels
- Number of channels: 1408
- Supported GNSS systems:
- GPS: L1CA, L2P(Y), L5
- BDS: B1I, B2I, B3I, B2a, B2b
- GLONASS: L1, L2
- GALILEO: E1, E5a, E5b
- QZSS: L1, L2, L5
Operating Time
- Cold start time: Less than 30 seconds
- Data update rate: 20 Hz
Accuracy
- High-precision static: ±2.5 mm + 0.5 ppm (horizontal) / ±5 mm + 0.5 ppm (vertical)
- Standard positioning: ±1.5 m (horizontal) / ±2.5 m (vertical)
- Supported correction data: RTCM V3.x, RTCM2.x, CMR
- Data formats: GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary
Physics Details
Dimensions & Weight
- Dimensions: 151 mm × 92 mm
- Weight: 1500 g
Environmental Durability
- Operating temperature: -30° to +65°C
- Storage temperature: -40° to +80°C
- Water and dust resistance: IP67 rating
- Drop resistance: up to 2 meters
- Vibration resistance: supported
- Humidity resistance: up to 100%
Indicators & Display
- Indicators: Satellites, Bluetooth, Battery
- Display: Built-in color screen
- Buttons: Power button + Voice broadcast button
- Certifications: FCC, CE, KC, ANATEL
Rover Specs
Connectivity & OS (Rover)
- Operating system: Linux
- Internal memory: 8 GB
- Bluetooth: Version 5.0 + EDR + BLE
- Wi-Fi: 802.11 a/b/g/n
- SIM card support
- Supported networks: LTE, UMTS, GSM
- User interface: Status display, data upload, firmware update
- Tilt sensor: e-Bubble
- Smart audio: Voice announcement for device status
Internal Radio (Rover)
- Type: Transmit only (TX)
- Power: Up to 5W
- Operating range: 8–10 km (up to 15 km in ideal conditions)
- Frequency range: 410 – 470 MHz
- Channel bandwidth: 12.5 / 25 kHz
- Supported protocols: Satel, TrimTalk, Hi-Target, PCC, HZSE, and others
Power (Rover)
- Battery type: Rechargeable internal lithium-ion
- Capacity: 24000 mAh – 3.6V
- Operating time: Up to 10 hours (in rover mode)
- Charging time: About 3.5 hours
- Operating voltage: Type-C: 12V/1.5A, 5-pin: 5V/2.2A
Base Specs
Connectivity & OS (Base)
- Operating system: Linux
- Internal memory: 8 GB
- Bluetooth: Version 5.0 + EDR + BLE
- Wi-Fi: 802.11 a/b/g/n
- SIM card support
- Supported networks: LTE, UMTS, GSM
- User interface: Status display, data upload, firmware update
- Smart audio: Voice announcement for device status
Internal Radio (Base)
- Type: Transmit only (TX)
- Power: Up to 5W
- Operating range: 8–10 km (up to 15 km in ideal conditions)
- Frequency range: 410 – 470 MHz
- Channel bandwidth: 12.5 / 25 kHz
- Supported protocols: Satel, TrimTalk, Hi-Target, PCC, HZSE, and others
Power (Base)
- Battery type: Rechargeable internal lithium-ion
- Capacity: 24000 mAh – 3.6V
- Operating time: Up to 13 hours (in base mode)
- Charging time: About 3.5 hours
- Operating voltage: Type-C: 12V/1.5A, 5-pin: 5V/2.2A
In the box you'll find
Warranty Card
USB Flash
Tripod
Tribrach
Plate Antenna Adapter
Meter
25cm Pole
Controller Carrier
Controller Charger
25cm Pole
